BMS Technical Parameters
| Battery type and serial number | LFP(16S) | NCM(14S) | |||||||
| Continuously charging/discharging current | 50A | 100A | 150A | 200A | 50A | 100A | 150A | 200A | |
| Communication protocol | CANBUS(default) RS485(Please contact Sale man) | ||||||||
| Custom function | Heating function, External switch, RS485 protocol | ||||||||
| Discharge Output Impedance | <2mΩ | ||||||||
| Working Temperature | -20℃-70℃ | ||||||||
| compensating impedance | 10mΩ | ||||||||
| Pre-charging | 0-3000ms | ||||||||
| Current limiting(charging) | 10A | ||||||||
| Current Balance | Passive balance | 150mA(Max) | |||||||
| Power consumption | Working mode power consumption | <40mA | |||||||
| Sleeping mode power consumption | 0uA | ||||||||
| Capacity protection | Nominal capacity | 5-500Ah | |||||||
| Remaining capacity protection | 5% | ||||||||
| Short Circuit protection | Short circuit protection lock | Continuously short in the output circuit | |||||||
| Short circuit protection lock times | 5 times | ||||||||
| Short circuit protection lock release | Connected with charger | ||||||||
| Individual cell voltage protection | Over voltage protection | 3650mV | 4200mV | ||||||
| Under voltage protection | 2700mV | 2900mV | |||||||
| Voltage protection | Over voltage protection | 57.6V | 58V | ||||||
| Under voltage protection | 41.6V | 40.6V | |||||||
| Current protection | Over current protection | 60A | 110A | 160A | 210A | 60A | 110A | 160A | 210A |
| Over current protection | 30mS | ||||||||
| Heating function | Start | 0℃ | |||||||
| Stop | 10℃ | ||||||||
BMS Functions
Voltage: total voltage, voltages of individual cells, minimum and maximum cell voltage.
Temperature: environment temperature, the temperature of cells, and BMS PCB.
State of charge: indicate the charge level of the battery.
Current: current in or out of the battery.

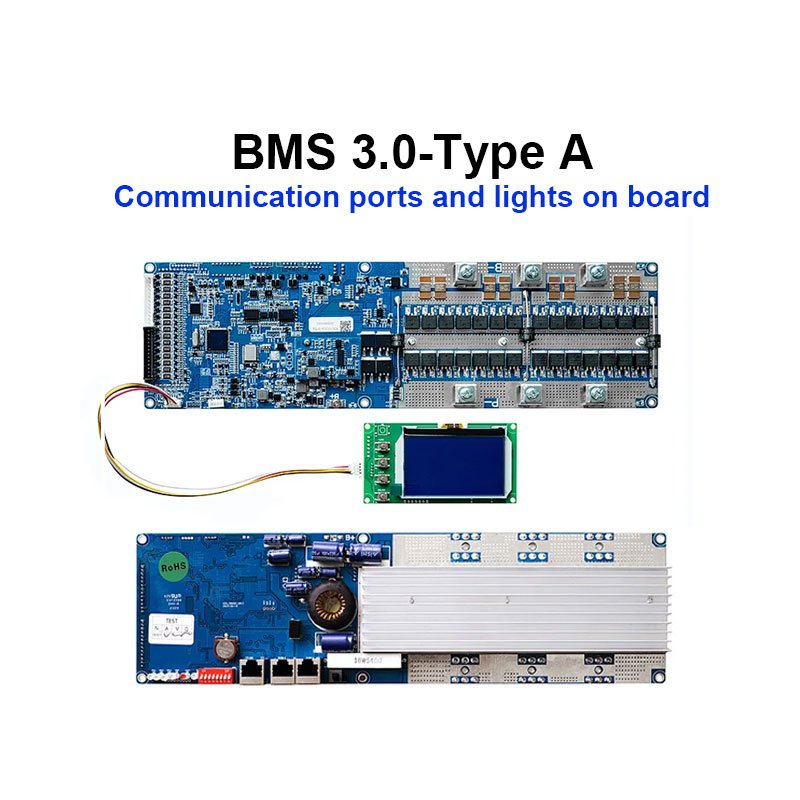

CANBUS 24/48V 8S/16S 200A lithium iron phosphate battery smart monitoring management system 1
Communication:
CANBUS communication
Our BMS can support up to 16 units in parallel operation.
RS485 communication(RS485 can be customize)
PS: When we want to view the battery pack parameters through the battery parameter monitoring software, we need to use the Rj45 to USB Adapter to connect the battery pack to the computer. We recommend that you purchase an Rj45 to USB Adapter from us. Adapters purchased from the market may not work properly due to the definition of the hardware
Protection:
Over voltage protection
Capacity protection
Pre-chargeing function
Current limiting
Under voltage protection
Charge, discharge, and ambient temperature protection
Charge and discharge over current protection
Charge current limitation
Short circuit protection
Custom function:
Heating function
External switch
RS485 protocol
Equalizing function:
2A Balancer board
Communication methods:
CANBUS communication method:
Now our CANBUS communication board supports these brands of inverters, and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
The default is the Pylontech CANBUS protocol
Goodwe
Growatt(The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid) , please contact the sales person)
Victron
LUXPOWER
Sofar
Deye
Sermatec
Renac
TBB POWER
Solis
SMA
Foxess
IMEON
PS:If the inverter brand not in the listed,please ask your inverter supplier for the protocol define.And sent it to us,we 'll help confirm that
RS485 communication method
Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485 protocol, please confirm with the salesman before buying what you need is that one RS485 protocol:
The default is the Pylontech RS485 protocol
Voitronic
Phocos
Growatt
PS:If the inverter brand not in the listed,please ask your inverter supplier for the protocol define.And sent it ti us,we'll help confirm that.
